Description

This product is an option for the following products: Nio 5MP LED (MDNG-5221), Nio Color 2MP (MDNC-2123 Option DE) Dental, Nio Color 3MP (MDNC-3421), Nio Color 3MP Dental (MDNC-3421), Nio Color 5.8MP (MDNC-6121), Nio Color 5MP (MDNC-6121), Nio Color 8MP (MDNC-8132)



Your journey in improved workflow begins here

The Barco MXRT-2700 graphics card delivers the essential workflow features, quality, and support to ensure radiologists can perform at their full potential. With 2GB of graphics memory driving three DisplayPort 1.4 outputs, it is the ideal solution for those looking for a cost-effective, reliable professional graphics card that can fit almost any workstation including small, power constrained systems.

Whether driving diagnostic, clinical, or auxiliary displays, the MXRT-2700 is fully functional as a main display controller or complementing a more advanced multi-head configuration. Key features include 3 ports to cover most basic display configurations, ample memory for PACS image loading, and low power requirements compatible with entry-level workstations in a small form factor for when compact size really matters.

✔ 2GB GDDR5 display memory

✔ 48 GB/s memory bandwidth

✔ 64-bit memory interface

✔ 1 DisplayPort 1.4 & 2 mini DisplayPorts 1.4 (2 mDP to DP locking adapters included)

✔ Maximum power consumption: < 40W

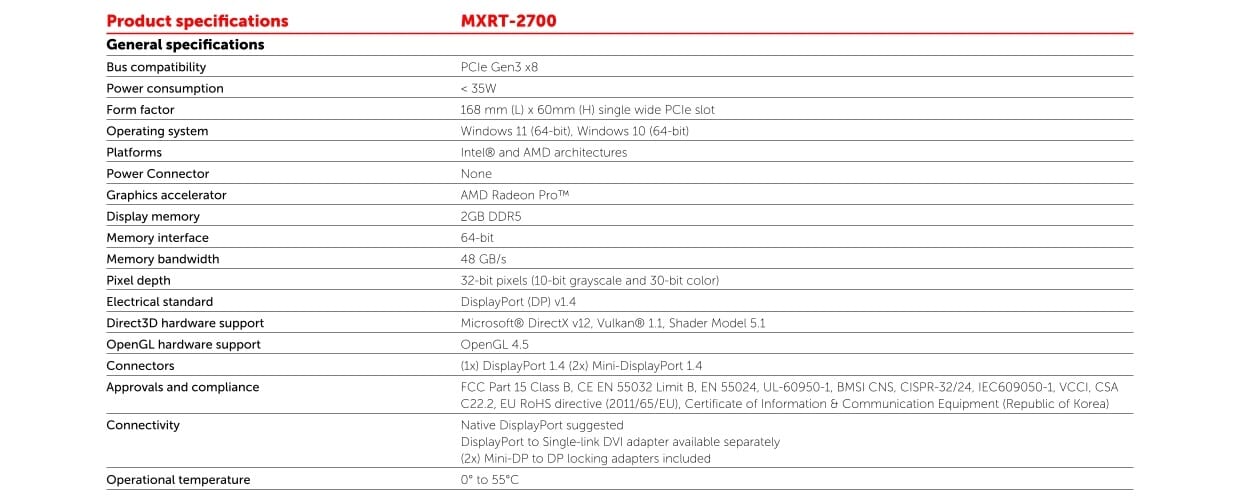

Specifications

---
