Description

This product is an option for the following products: Coronis 5MP LED (MDCG-5221), Coronis 5MP LED (MDCG-5221), Coronis Fusion 4MP (MDCC-4430), Coronis Fusion 6MP (MDCC-6530), Coronis Uniti (MDMC-12133), MDPC-8127, Nio 5MP LED (MDNG-5221), Nio Color 2MP (MDNC-2123 Option DE) Dental, Nio Color 3MP (MDNC-3421), Nio Color 3MP Dental (MDNC-3421), Nio Color 5.8MP (MDNC-6121), Nio Color 5MP (MDNC-6121)



Ultimate solution for mainstream diagnostic imaging

The high-performing Barco MXRT-6700 graphics card is a versatile solution with the power and features necessary to meet most diagnostic imaging needs. With 8GB of graphics memory driving four DisplayPort v1.4 outputs, it is the ideal solution for organizations looking to standardize on one controller across their entire fleet of reading stations.

Accelerate your workflow application responsiveness with 1792 stream processors and enable more efficient data transfers between the GPU and CPU with PCIe® 3.0 support. Key features include 4 ports to cover expanded display arrays, increased memory for larger image data loading, EDID emulation for multi-workstation configurations, and Thunderbolt™ 3 compatibility for eGFX applications.

✔ 8GB GDDR5 display memory

✔ 160 GB/s memory bandwidth

✔ 256-bit memory interface

✔ 4 DisplayPorts 1.4

✔ Maximum power consumption: 75W

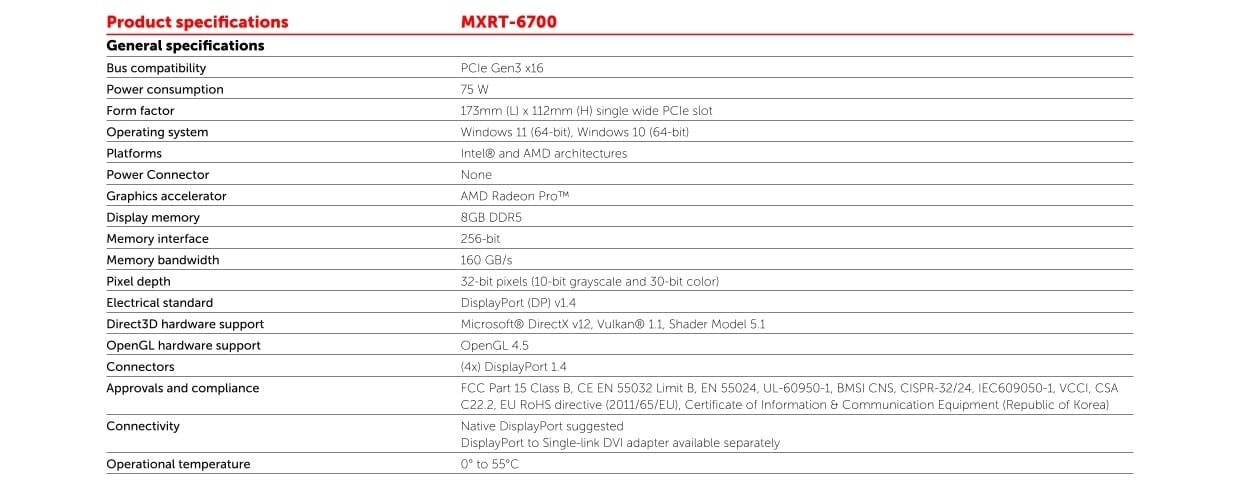

Specifications

---
