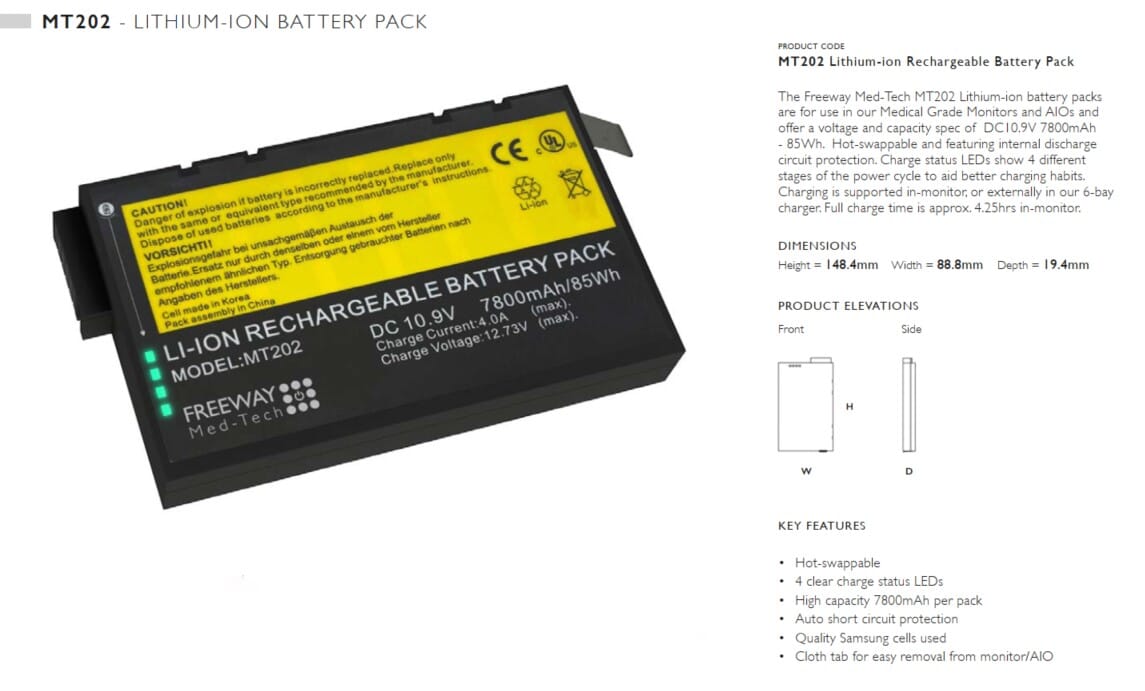

MT202 Lithium-ion Rechargeable Battery Pack
- Width : 88.8mm
- Height : 148.4mm
- Depth : 19.4mm
Add To Your Quotation
-
+
Key Features
- Freeway Med-Tech MT202 Lithium-ion battery packs - For use in our Medical Grade Monitors and AIOs.
- Voltage - 10.9V.
- Capacity - 7800mAh - 85Wh per pack.
- Full charge time is approx. 4.25hrs in-monitor.
- Hot-Swappable.
- Internal discharge circuit protection.
- Charge status LEDs show 4 different stages of the power cycle to aid better charging habits.
- Charging is supported in-monitor - As well as externally in our 6-bay charger.
- High Quality Samsung SDI 18650 cells used.
- Cloth Tab - Allowing for easy removal from monitor/AIO

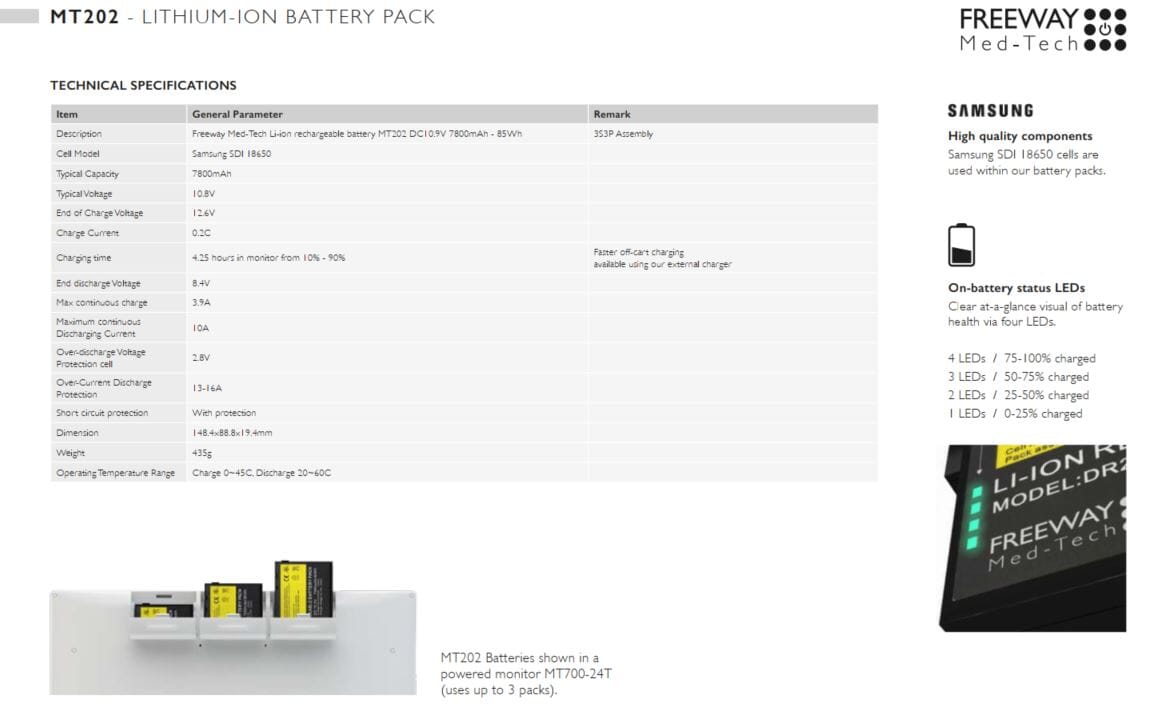

- Technical Specification
End of charge voltage - 12.6V.
Charge current - 0.2C.
End discharge voltage - 8.4V.
Max continuous charge - 3.9A.
Max continuous discharge current - 10A.
Over-discharge voltage protection cell - 2.8V.
Over-current discharge protection - 13-16A.
Weight - 435G.
