Description

This product is an option for the following products: Coronis 5MP LED (MDCG-5221), Coronis 5MP LED (MDCG-5221), Coronis Fusion 4MP (MDCC-4430), Coronis Fusion 6MP (MDCC-6530), Coronis Uniti (MDMC-12133), Nio Color 5.8MP (MDNC-6121), Nio Color 5MP (MDNC-6121)



Flagship GPU for today’s workflow & tomorrow’s diagnostic challenges

Delivering uncompromised features, performance, and reliability, the Barco MXRT-8700 graphics card is designed to handle the most demanding diagnostic workflows and complex image data sets. Available exclusively from Barco, the platform packages 16GB of graphics memory while driving six DisplayPort 1.4 in a single PCI slot, making it is the ideal solution for facilities using advanced multi-display production-level reading stations.

Accelerate your workflow application responsiveness and data transfer with 2304 stream processors, 224 GB/s memory bandwidth and PCIe® 3.0 support. Key features include industry-leading 6 display ports to cover a wide array of display configurations, 16GB DDR5 memory for larger PACS data loading, EDID emulation for multi-workstation configurations, and 30-bit color depth support.

✔ 16GB GDDR5 display memory

✔ 224 GB/s memory bandwidth

✔ 256-bit memory interface

✔ 6 mini DisplayPorts 1.4 (4 mDP to DP locking adapters included)

✔ Maximum power consumption: 130W (6-pin)

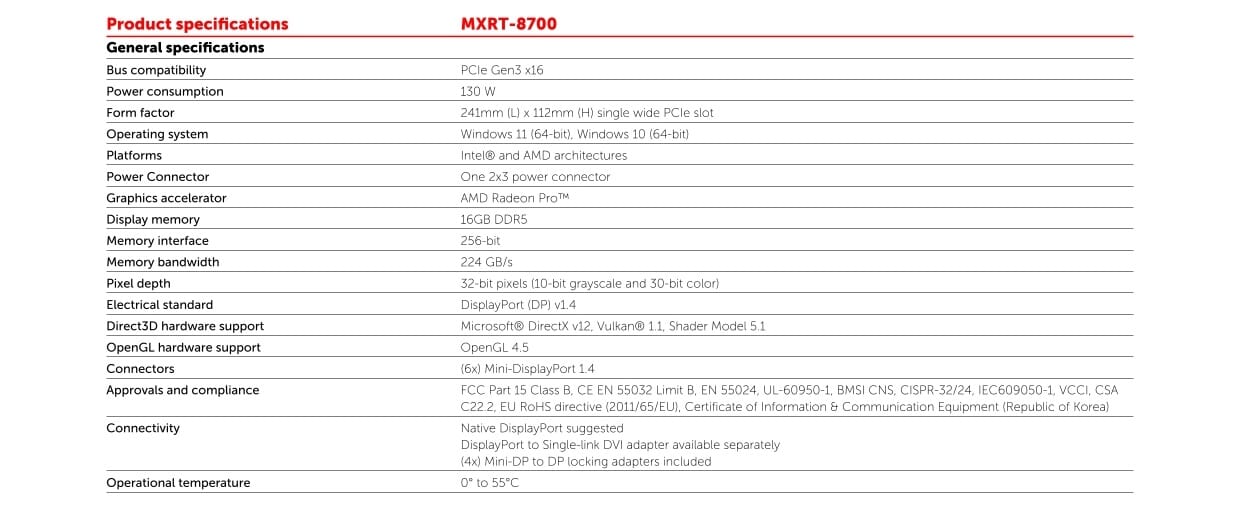

Specifications

---
